Digital Die Cutter
B2 Sheets and Vinyl Roll Cutting in One
- Cuts, kiss cuts, and scores larger formats
- Cuts adhesive vinyl roll-to-sheet
- Processes cut files without physical dies

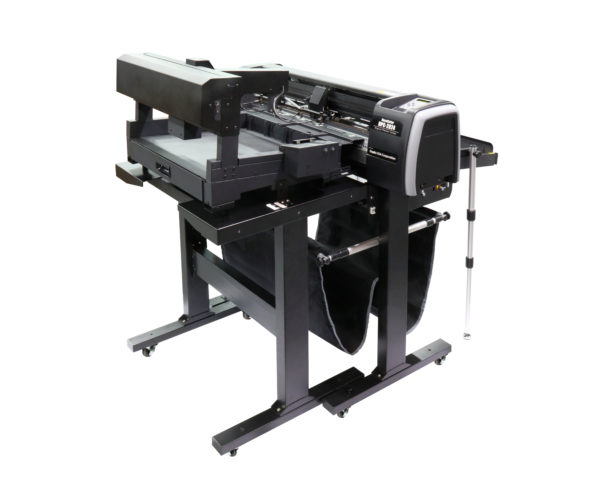

The DocuCutter DPC-2024 Digital Die Cutter combines its capacity to support oversize B2 sheets with 24” vinyl cutting technology. The DPC-2024 handles substrates such as paper, laminates, and adhesive stocks up to 350 gsm to produce applications from pocket folders to custom boxes. Each sheet is guided back and forth on the cutting pad by three multi-pressure pinch rollers. It comes included with a cutting knife and scoring pen to process printed output in addition to a vinyl cutting knife for finishing decals on demand.
Features
- Easy job file preparation and set up
- Quick changeover from paper to vinyl cutting
- Automated feeding with adjustable trays
- Dual tooling head and Flexi 19 software
Key Applications
- Custom boxes
- Pocket folders
- Labels and stickers
- Vinyl Decals
- Floor Graphics
Specifications
| Speed | Up to 1530mm per second |
|---|---|
| Input Paper Size | 8.5" x 11" to 20.87" x 29.53" |
| Feeder Capacity | 1.9" |
| Paper Weight | 350 gsm |
| Maximum Cutting Area (Vinyl) | 21" x 19.68' |
| Maximum Roll Width (Vinyl) | Up to 24" |
Applications
DPC-2024 Digital Die Cutter: A Hybrid B2 Paper and Vinyl Cutter
The DPC-2024 Digital Die Cutter is a versatile solution for modern print shops. This hybrid cutter not only supports B2 sheets, but it also integrates an efficient vinyl cutter. It’s a perfect all-in-one choice for small businesses. Whether you’re working with paper or vinyl, the DPC-2024 handles a variety of applications with great quality, providing a solution for multiple production needs.
B2 Cutter
With the ability to accommodate formats up to 23″ x 31″ and substrates up to 350 gsm, the DPC-2024 excels at short-run, custom-shaped applications. This feature is ideal for producing items like pocket folders, custom packaging, and promotional materials. The dual tooling head, which follows the cut pattern in the design file, uses a cutting knife and scoring pen to process both offset and digital print jobs. You can efficiently cut shapes, kiss-cut labels, and score fold lines for folded pieces. Lamination may be required to prevent toner cracking on certain substrates, ensuring smooth and professional results every time.
Vinyl Cutter
The vinyl cutter function of the DPC-2024 takes your capabilities to the next level. It allows print businesses to produce custom vinyl applications such as adhesive decals, floor graphics, and other promotional products. It supports 24” media widths and handles intricate vinyl cutting with ease. This feature is ideal for creating complex designs like custom lettering and detailed logos. Transform roll media into finished sheets without the need for manual cutting.
For print shops that need a vinyl cutter that can handle larger formats, the DPC-2024 offers an efficient, high-quality solution. It’s the perfect tool for creating custom vinyl graphics, packaging, and promotional materials, all while maintaining precision and speed. The DPC-2024 is compact and an economical solution for creating samples and short-run jobs on demand.
