Rotary Die Cutter
High Speed Cutting for Custom-Shaped Jobs
- Cuts, kiss cuts, perforate, and creases
- Utilizes custom-made flexible dies
- Removes skeleton from finished pieces

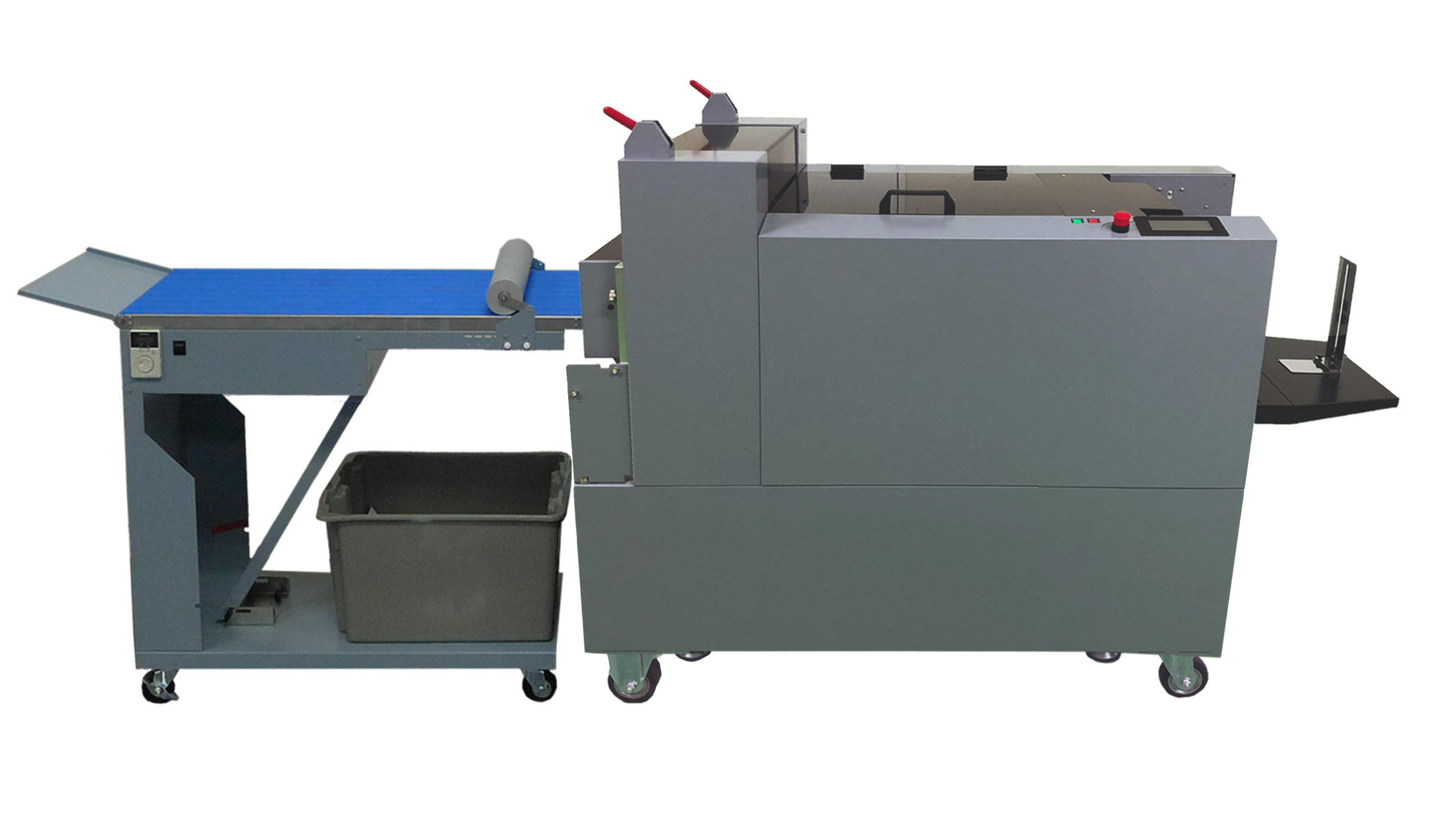

The high-speed UD-310 Rotary Die Cutter delivers print marketing applications in distinctive shapes and sizes to help you stand out from the competition. Processing up to 4,000 sheets per hour, the UD-310 utilizes a magnetic cylinder and interchangeable flexible dies that affix to it to process paper, laminates, adhesives and synthetic stocks. Suitable for mid to longer runs, the UD-310 provides high productivity and faster turnarounds.
Features
- Easy die set up and changeover
- High feed capacity for non-stop productivity
- Separation station that deflects skeletons into waste bin
- X and Y sensors to read registration marks and compensate for image shifting
Key Applications
- Business cards
- Retail tags
- Labels and stickers
- Door hangers
- Invitations
Specifications
| Speed | Up to 4,000 sheets per hour |
|---|---|
| Input Paper Size | 8.26" x 11.69" to 15.35" x 20.47" |
| Feeder Capacity | 8.7" |
| Paper Weight | 200-400 gsm |
Applications
“It’s our first die cutter and now we’ve got the ability to change out our dies and create more efficient products for other customers. We’re really looking forward to growing our business because of this piece of equipment.”
United Mailing Services United Mailing Services offers print to mail services for direct marketing pieces and more.
“We run door hangers, table tent cards, postcards and business cards. And what we found was the cost of the die was paid for in a matter of 2 days for the amount of cutting that we save. We run our business cards now on the UD-300 instead of cutting them on a guillotine cutter and saved probably almost 5 hours per day alone.”
Dynamic Imaging + Distribution Dynamic Imaging + Distribution prints it all – business cards, postcards, brochures, flyers, direct mail, banners, window graphics and more.
UD-310 Rotary Die Cutter: High-Speed Cutting for Custom-Shaped Jobs
The UD-310 Rotary Die Cutter brings value, opportunity, and profitability to the business of print. Produce business cards and postcards with decorative edges and unique product labels for impactful presentations. Offer event invitations, flyers, and direct mailers in precise shapes that boost response rates.
Flexible Dies
Meet your customer’s needs with flexible dies made according to their specifications. More economical and faster to manufacture, flexible dies are made of engraved magnetic steel. They offer a high degree of cutting accuracy compared to steel rule and solid dies. They are easy to mount, with alignment marks on the cylinder for quick adjustments, and switch out in less than a minute.
Read: A Quick Guide to Duplo Die Cutting Machines
Flexible dies perform a range of finishing capabilities including die cutting intricate shapes and kiss cutting stickers. They also perform perforations with specified teeth, and three-knife creasing to prevent toner cracking on folded applications.
High Productive Rotary Die Cutter
Run an efficient and productive operation with simple setups and changeovers. Once the die is mounted over the magnetic cylinder, job setup is completed through the touchscreen panel with individual buttons to start and stop operation. Make adjustments in 0.1mm increments along the width and length of the sheet to ensure proper sheet alignment. Use the three-step speed adjustment to slow down or speed up the rotational speed of the cylinder for consistent cutting.
Feeding up to 4,000 sheets per hour, the UD-310 features a high stack capacity of 8.7” (220mm). An ultrasonic double feed sensor detects when two or more sheets have been fed. The air suction feeder comes equipped with fans and air blowers to aid in the separation of double-sided laminated and synthetic stocks. They also help reduce static on digitally printed output.
Automatic Separation
With die cutting, separation is key, and the UD-310 comes built-in with a revamped separation station. It automatically removes the skeleton from the finished pieces, deflecting it into the waste bin. The separation station utilizes a cassette module with deflectors and pressure rollers. Only the finished pieces end up on the long conveyor stacker.
