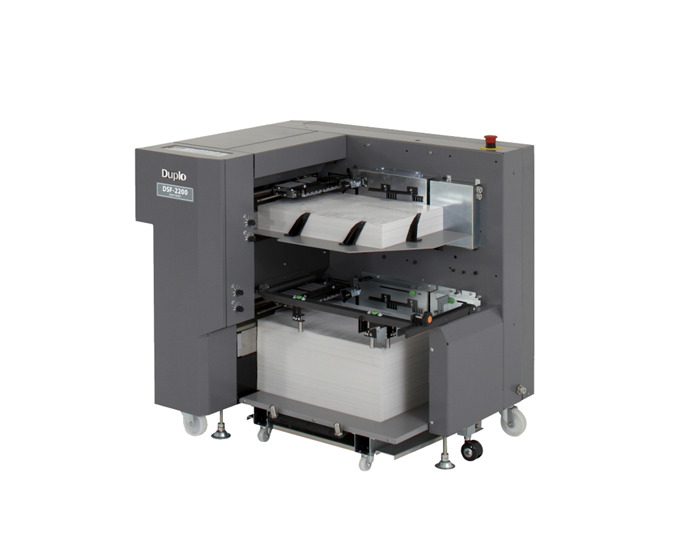

DSF-2200

Sheet Feeder

Automated, Digital Sheet Feeding

  • Feeds pre-collated sets
  • Processes small to mid volume sets
  • Feeds into a Duplo bookletmaker
Download English Brochure Download Spanish Brochure

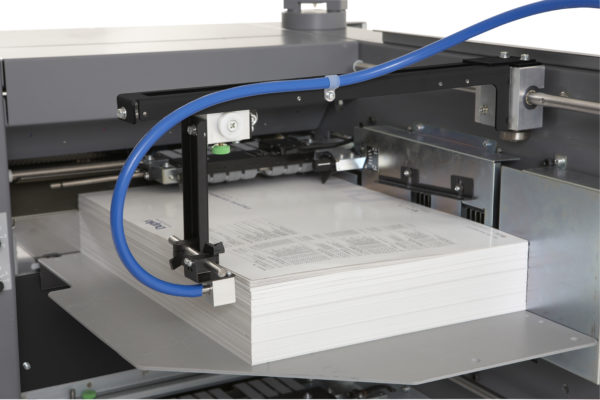

DSF-2200 tray

The DSF-2200 Sheet Feeder handles the output from your digital presses for on demand bookletmaking. Similar to its higher-end counterpart, the DSF-6000, the DSF-2200 utilizes Duplo’s patented technology to provide a constant and steady supply of air and suction up to 200 sheets per minute. Front/side air separation and an anti-static device minimize the effects of static commonly seen in digitally printed media and the optional barcode reader helps process variable data with integrity.

Features

  • High resolution sensors for double feed detection
  • Two air suction bins with built-in end mark reader
  • Air management system for fine tune adjustments
  • Configuration with DBM-600/350/150 Bookletmaker and iSaddle 5.0

Key Applications

  • Digital bookletmaking

Specifications

Speed

Up to 200 sheets per minute

Bin Capacity

Tray A 2.56", Tray B 7.87"

Input Paper Size

4.13" x 7.87" to 14.02" x 20"

Options

Barcode kit, Extension tray, Pre-loading kit, Trail edge air kit
