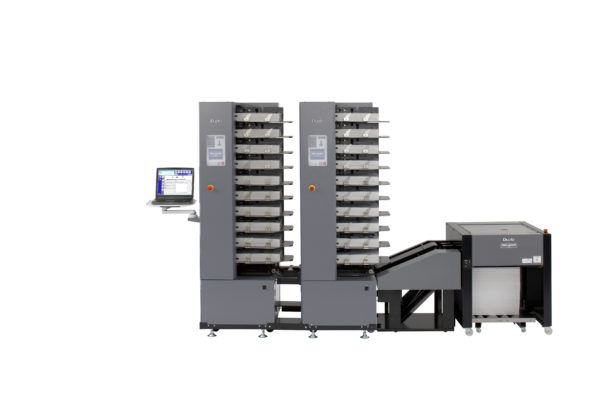

DSC-10/60i

Collator

Automated, High Speed Document Collating

  • Turns un-collated sheets into pre-sorted documents
  • Processes high volume, multi-sheet sets
  • Feeds into a Duplo bookletmaker or stacker
Download English Brochure Download Spanish Brochure

Ideal for assembling document sets, the DSC-10/60i is one of the most reliable and heavy-duty collators in the industry. Each of its 10 bins comes equipped with fine adjustments and patented dual fan technology that generates a steady flow of air for separation and feeding. It also offers the flexibility to feed output from multiple presses, both offset and digital. Use it together with the DBM-400STR Deep Pile Stacker to collate and stack up to 10,000 sets per hour.

Features

  • High resolution sensors for double feed detection
  • Automatic calibration to feed different types of paper
  • Air management system for fine tune adjustments
  • Configuration with the DBM-600/350/150 Bookletmaker and iSaddle 5.0

Key Applications

  • Collated work
  • Marketing collateral

Specifications

Speed

Up to 10000 sets per hour

Bin Capacity

2.6"

Input Paper Size

4.1" x 5.8" to 14" x 24"

Paper Weight

Art coated paper 79 – 157gsm, Cover 52-300 gsm, Cover 79-300 gsm, Fine quality paper 52 – 157gsm

Options

DBM-400STR Deep Pile Stacker, DCR-ST Cross Stacker
