Perfect Binder
Perfect Binding Made Easy
- Binds book blocks with soft covers
- Applies hot-melt EVA glue to the spine and sides
- Planamelt glue option for coated and uncoated stock

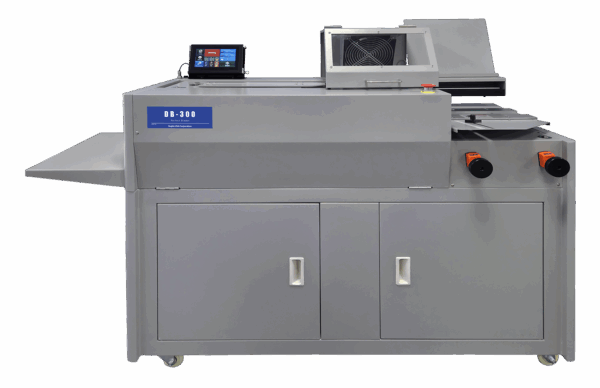

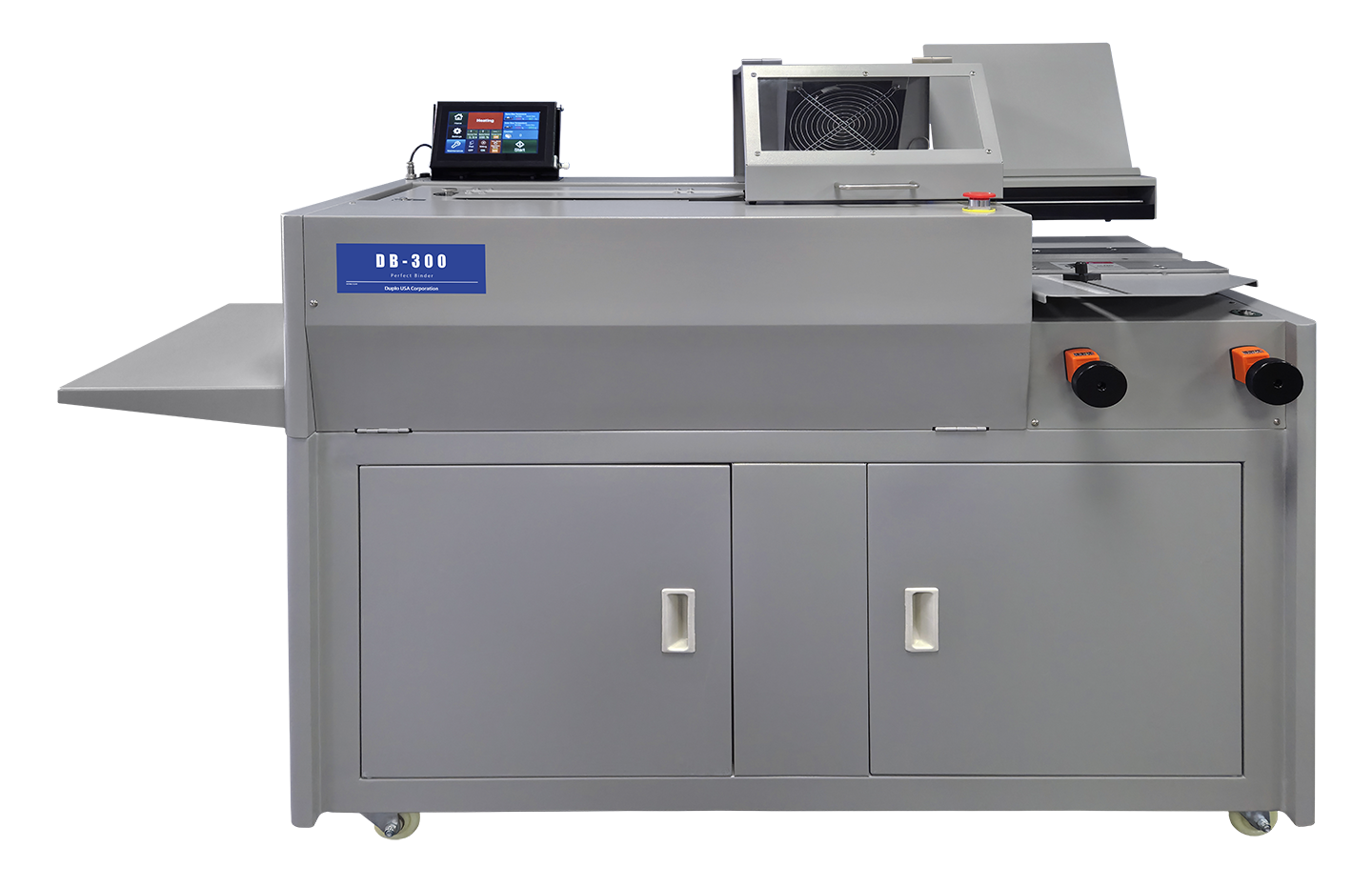

Ideal for producing professional-quality books and manuals, the DB-300 Perfect Binder is built for efficiency and ease of use.

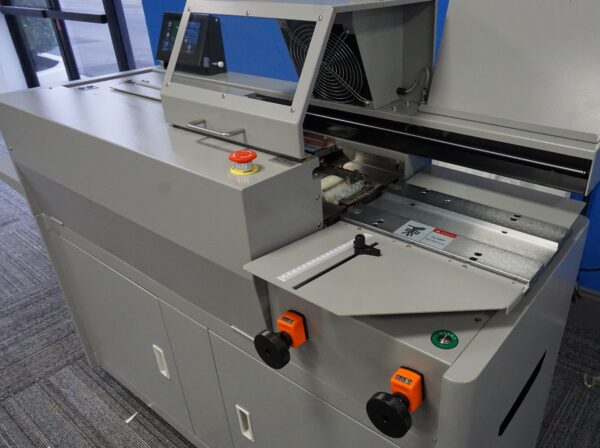

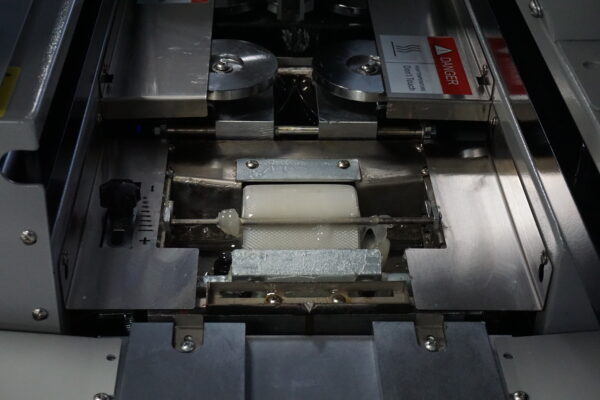

The stand-alone DB-300 produces books up to 2″ thick at up to 400 cycles per hour. The operator inserts the book block inside the single clamp and the book cover in the nipping station. Once binding is in progress, the book block is moved across the milling and notching station to roughen up the spine in preparation for the glue application. The glue tank comes equipped with two side gluing wheels to bind the edges of the book for proper opening and closing. The adjustable nipping and clamping station accommodate a variety of book thicknesses for a professional finish every time.
Features
- Auto mode for optimal efficiency

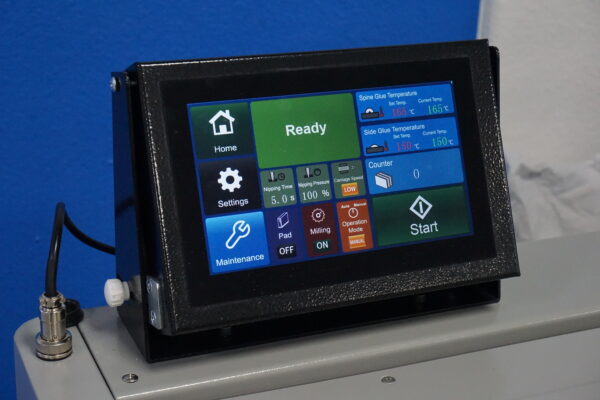

- Intuitive touchscreen panel with production controls including glue temperature
- Dust removal, fume extractor, and protective hood for safety
Key Applications
- Paperback books
- Textbooks and workbooks
- Notebooks and journals
- Catalogs and manuals
- Books with spot UV covers
Specifications
| Speed | Up to 400 cycles per hour |
|---|---|
| Book Size | 3" x 5" to 13" x 13" |
| Binding Thickness | Up to 2" |
| Maximum Cover Size | 13" x 33" |
