Foil/Laminator
2-in-1 Enhancement Solution for Shorter Runs
- Applies foil over printed toner or spot UV
- Applies single-sided lamination
- Creates embellished applications on a budget

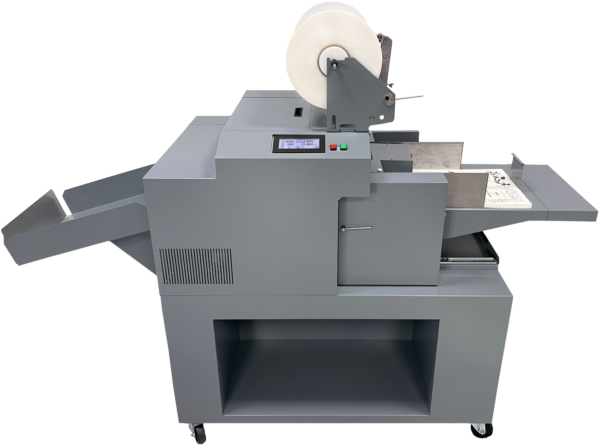

The DFL-700 Foil/Laminator adds value to digitally-printed output on a budget. Ideal for short runs and variable data jobs, the DFL-700 can be used to apply toner or polymer-based foil as well as single-sided lamination for an enhanced finish. It brings the capability to foil on both coated and uncoated paper, process longer sheet sizes up to 26″, and comes equipped with features designed to reduce production time.
Features
- Easy job set up and changeover
- Air control adjustments for various paper weights
- Preheat roller maintains temperature of heated roller, reducing downtime between usage
- Pressure adjustments promote better adhesion on foiling jobs
Key Applications
- Packaging
- Book covers
- Business cards
- Invitations
- Tickets
Specifications
| Speed | 40 sheets per minute (foiling); 20 sheets per minute (lamination) |
|---|---|
| Input Paper Size | Min 8.26" x 8.26"/ Max 15.16" x 25.98" |
| Feeder Capacity | 4.72" |
| Paper Weight | 150-400 gsm |
Applications
DFL-700: Cost-Effective Foiling and Laminating Machine
The DFL-700 Foil/Laminator is a versatile, budget-friendly solution for enhancing digitally printed output. Ideal for short runs and variable data jobs, this foiling and laminating machine allows you to apply both toner and polymer-based foil as well as single-sided lamination, providing a professional finish without the high costs of traditional methods.
The DFL-700 makes it easy to create foiled effects on both coated and uncoated papers. Foil invitations, greeting cards, and packaging without the need for stamping dies. With speeds of up to 40 sheets per minute, it’s a reliable and efficient machine for on-demand digital foiling and lamination.

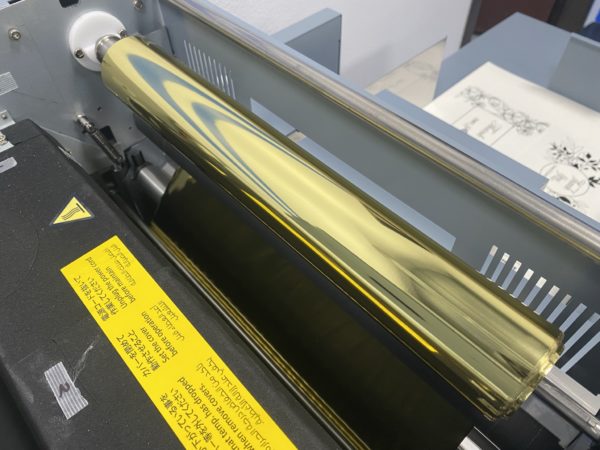

Toner-Reactive Foiling
The DFL-700 enables simple, in-house digital toner-based foiling. The heated roller fuses foil with printed toner. Simply print your artwork in 100% black toner, set up the foil roll, and heat the machine to 135°F. The foil is automatically applied to the printed sheets, ready for finishing. The DFL-700 works with all types of foils, available in a variety of colors to suit your needs.
Polymer Foiling with Raised Effects
Create tactile foiled effects with polymer foiling. The three-step process involves lamination, spot coating, and foiling. Begin by laminating your printed sheets with the DFL-700, then process them on a spot UV coater like the Duplo DDC-810 Pro, then return the sheets to the DFL-700 to apply foil for a luxurious, raised finish.
This feature is perfect for short-run packaging, business cards, and book covers. Duplo USA offers gold and silver polymer-based foils for a high-end, touchable finish.
Thermal Laminating
The DFL-700 also offers thermal lamination to protect printed materials while enhancing their look and feel. Laminating film is heat-activated, and the DFL-700 accommodates rolls up to 6,000 feet. Whether adding lamination on its own or as a layer under spot UV or polymer foiling, it provides a clean, durable finish. Use matte, gloss, and soft-touch laminates to complement your specific project needs.
