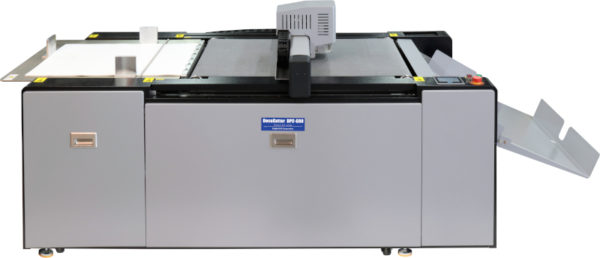

DPC-600

Digital Die Cutter

B2 Flatbed Cutting On Demand

  • Cuts, kiss cuts, scores, and perforates
  • Handles larger formats and thicker substrates
  • Processes cut files without physical dies
Download English Brochure Download Spanish Brochure

Enter new markets with on demand packaging and shape cutting. Featuring smart technology, the DocuCutter DPC-600 Digital Die Cutter produces custom boxes, pocket folders, and POP retail displays in shorter runs. It comes standard with a number of tools designed to process various types of substrates and thicknesses. The press cut tool performs precise cutting on media up to 3 mm thick. Cut intricate shapes on paper and PET plastics as well as kiss cut adhesive stock up to 1.5 mm thick with the active knife or drag knife. Score fold lines on packaging using the scoring wheel. Use the optional oscillating knife to pulsate through corrugated, chip boards, and foam boards up to 6 mm thick.

Features

  • Easy job file preparation and set up
  • Automated registration and changeovers
  • Integrates with Fiery JobFlow to apply registration marks and QR code
  • Quadruple tooling head and DPC Connect software

Key Applications

  • Custom boxes
  • POP retail displays
  • Foam board signage
  • Face shields
  • Pocket Folders

Resources

Integration with Fiery Impose

Specifications

Knife Speed

Up to 1200mm per second

Input Paper Size

11" x 8.27" to 14.33" x 29.13", 2.91" x 4.13" to 12.24" x 18", 3.95" x 5.04" to 11.69" x 17", 4.1" x 5.8" to 14" x 24", 4.13" x 5.82" to 14.76" x 41.33", 4.13" x 7.87" to 14.02" x 20", 4.13" x 7.87" to 14.33" x 20.66", 4.14" x 6.70" to 14.33" x 25.19", 4.17" x 4.33" to 14.34" x 17", 4.72" x 8.27" to 12.60" x 18.11", 4.72" x 8.27" to 14.01" x 24.01", 4.73" x 7.2" to 12.2" x 25.5", 4.73" x 8.27" to 14.33" x 20.66", 4" x 5" to 11" x 17", 5.5" x 5.9" to 14.56" x 26.37", 5.82" x 8.27" to 12.60" x 18.11", 5" x 7.3" to 13" x 19", 8.26" x 11.69" to 14.33" x 20.27", 8.26" x 11.69" to 15.35" x 20.47", 8.26" x 8.26" to 13" x 26.4", 8.26" x 8.26" to 13" x 39.3", 8.26" x 8.26" to 14.56" x 39.37", 8.26” x 8.26” to 14.56” x 26.37”, 8.5" x 11" to 14" x 20", 8.5" x 11" to 20.87" x 29.53", 8.5" x 11" to 23" x 31", Book block: 1.97" x 4.72" to 12.6" x 15.75", Book block: 4.72" x 4.72" to 12.6" x 14.17", Cover bin: B5 to B3, Cover: 4.72" x 9.84" to 14.17" x 27.4", Foil: 5.8” x 8.3” to 13” x 24”, Laminate: 8.3” x 11.7” to 13” x 24”, Ledger: 12" x 18", and 13" x 19", Legal: 12" x 18", and 13" x 19", Legal: 9" x 14", Letter: 12" x 18", and 13" x 19", Letter: 9" x 14", Maximum cover: 12.6" x 33", Number of Sheets, Postcard to A3, Refer to brochure

Feeder Capacity

3.9"

Options

Duplo TSC Touchscreen with stand, Oscillating knife, Roll fed unit

Maximum Cutting Thickness

Up to 6mm
